Bay 51 Series Explosion Proof Pendant Light | ATEX & IECEx Certified for Zone 1, 2

Description
Documents

ATEX

Ex II 2G Ex db eb mb IIC T6/T5 Gb

Ex II 2D Ex tb IIIC T80°C/ T95°C Db

IECEx

Ex db eb mb IIC T5…T6 Gb;

Ex tb IIIC T95℃…T80C Db

Feature

● For Zone 1,2 and Zone 21,22

● 20W can replace 2*18W fluorescent lamps,Energy saving

● Built in Ni-Cd emergency power supply (optional)

● 590nm Amber led (optional)

Bay51 EX linear light Datasheet_EN

Request sample WhatsApp Email

Product details

Application

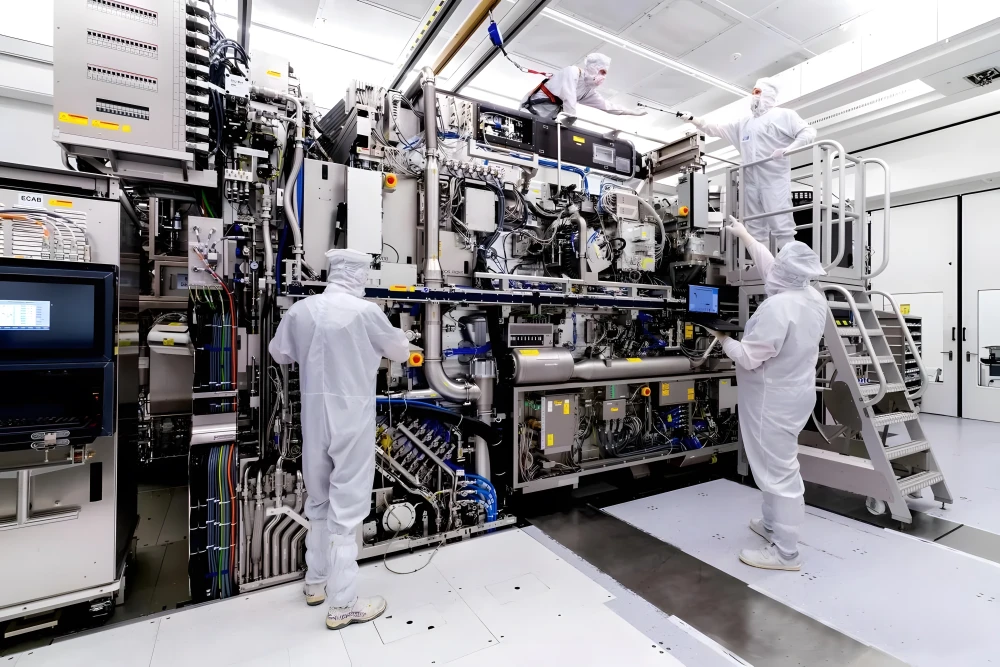

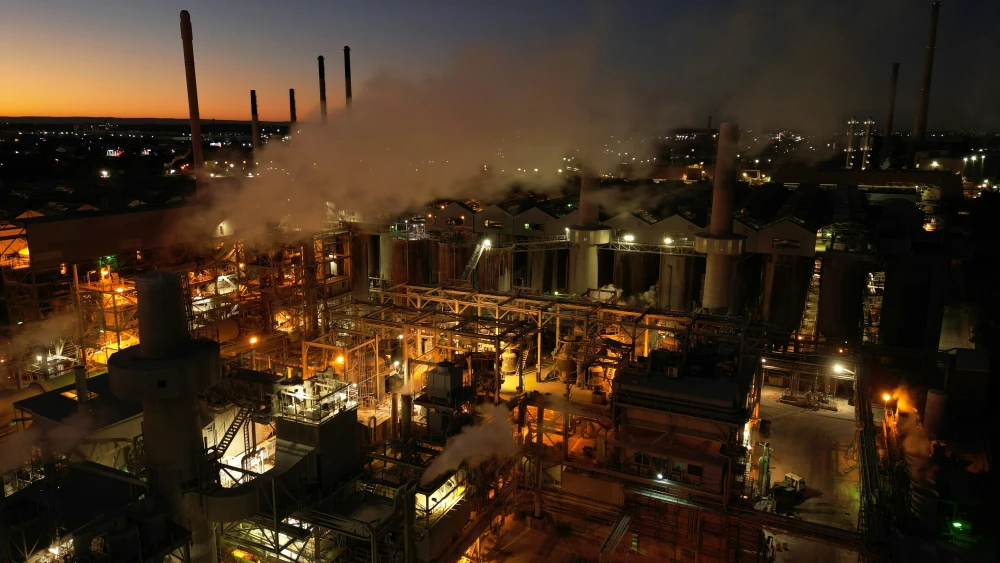

Oil and gas, marine, Chemical, pharmaceutical, semiconductor,

mining,military industry, paint booth,power plant ETC hazardous area.

Technical Specifications

Standards：60079-0, 60079-1, 60079-7, and 60079-18

Input：AC100-277V,50-60Hz

Power：18W,20W,30W,36W,40W,50W,60W

Light source: LED module

Color temperature：5700K±250K (3000K、4000K Optional)

Allowable Temperature： -20°C – +55°C

Protection grade：Ip67 & IK10

Corrosion-proof：WF2

L80B20@25℃：>100000H

Terminal：1.5~4mm2

Cable entries：4×Φ21 hole, with 3×M20×1.5 plug (304SS),

1×M20×1.5 gland (Nickel plated brass) ,

suitable for Φ7~Φ12mm cable

HS code：9405409000

Country of origin：China

Application Case

Bay 51 Series Explosion Proof Pendant Light | ATEX & IECEx Certified for Zone 1, 2 FAQS

Is SEEKINGLED a real manufacturer?

Yes, we are. SEEKINGLED is a real manufacturer. Only manufacturers can get QAR and QAN certificates.
What is the delivery time for bay51 series explosion proof pendant lights?

Sample orders take about 5 days. Bulk orders usually take 2 to 3 weeks.
What is your minimum order quantity (MOQ)?

Our standard MOQ is 100 pieces. However, during the early stage of cooperation, we can also accept sample orders and small batch orders.
Do you offer door-to-door delivery?

Yes, we can provide door-to-door shipping. If you don't have experience importing from China, we can help. We will work with a reliable logistics company to deliver the goods directly to your warehouse.
What hazardous area classifications are suitable for the bay51 Series explosion-proof pendant light?

Gas:ZONE 1,2; Dust:ZONE 21,22
What wattage can replace the traditional Fluorescent light fixtures?

20W(3200LM) replace 36W Fluorescent light fixtures 40W(6400LM) replace 72W Fluorescent light fixtures
Why is the BAY51 Series Explosion Proof pendant Lights Better than Traditional Fluorescent Lights?

1,The BAY51 Series uses a new LED module with an aluminum heatsink. Its lifespan reaches up to 100,000 hours. Traditional fluorescent lamps have no heatsink and usually last only 30,000 hours. 2,Higher Brightness, 60% energy savings The BAY51 Series provides 160 lm/W,traditional fluorescent tubes only reach about 90 lm/W. After losses from the protective cover,the real efficiency drops to around 80 lm/W. 3,More Reliable Driver The BAY51 Series uses a special LED driver that lasts up to 5 years. Traditional fluorescent lamps need a ballast that usually lasts only 2 years. 4,Better Light Control We designed different optical lenses for various applications. These lenses give precise lighting for long corridors, small area spotlighting, and wide flood lighting. Such effects are hard to achieve with normal fixtures.
What is the protection rating of the BAY51 Series Explosion Proof pendant Light?

IP67 and IK10
Why Did SEEKINGLED Develop the BAY51 Series Explosion-Proof pendant Light?

Currently, 80% of explosion-proof pendant lights on the market still use traditional fluorescent T8 tubes. These lamps have low light efficiency. They also suffer from fast light decay and short lifespan. In high-vibration environments, they easily have poor contact and cause failures.
What application scenarios are recommended for using the BAY51 Series explosion-proof pendant light?

The bay51 Series is recommended for various hazardous areas, including: Oil & Gas industry Marine & Ship Chemical plants Pharmaceutical Plant Semiconductor manufacturing Mining operations Military industry Paint spray booths Power plants
Optional Emergency Lighting Available?

Yes! It supports 5W(1000LM) emergency lighting for 3 hours.
Can it directly replace traditional fluorescent tube fixtures?

Yes, it can. This is an all-in-one luminaire. It needs no ballast and no tubes. It also requires almost zero maintenance.
Who is responsible for the design and manufacturing?

The bay51 Series is designed and manufactured by SEEKINGLED. The explosion-proof design comes from experienced engineers who previously worked at Warom and Ocean's King, and have now joined SEEKINGLED. Our team has further optimized the optics and electronics, making the product even better.
Can I become your distributor?

If your company is in the oil and gas equipment industry, we would be happy to cooperate with you. SEEKINGLED would be very pleased to become your partner. Please feel free to contact us at sales02@seekingled.com. We would be honored to learn more about your business model and discuss potential cooperation.
